How to Use OADM in WDM Network ?

by http://www.fiber-mart.com

OADM is a cost-effective and easy to use passive fiber optic component, which can provide easy to build and grow connectivity environment for WDM network. The optical add-drop multiplexer is one of the key devices to implement such optical signal processing. Use of OADM makes it possible to freely add or drop signals with arbitrary wavelengths over multiplexed optical signals by assigning a wavelength to each destination. In this article, let us introduce how to use OADM in WDM Network.
Inside an OADM
A traditional OADM consists of three parts: an optical demultiplexer, an optical multiplexer and between them a method of reconfiguring the paths between the optical demultiplexer, the optical multiplexer and a set of ports for adding and dropping signals. The multiplexer is used to couple two or more wavelengths into the same fiber. Then the reconfiguration can be achieved by a fiber patch panel or by optical switches which direct the wavelengths to the optical multiplexer or to drop ports. The demultiplexer undoes what the multiplexer has done. It separates a multiplicity of wavelengths in fiber and directs them to many fibers.
Main Function and Principle of OADM
For an OADM, “Add” refers to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal while “drop” refers to drop or remove one or more channels, passing those signals to another network path. The OADM selectively removes (drops) a wavelength from a multiplicity of wavelengths in fiber, and thus from traffic on the particular channel. It then adds in the same direction of data flow the same wavelength, but with different data content. The main function of the OADM function is shown in the following picture. This function is especially used in WDM ring systems as well as in long-haul with drop-add features.
How to Connect OADM With WDM MUX/DEMUX
In most cases, OADM is deployed with CWDM or DWDM MUX/DEMUX. It is usually installed in a fiber optic link between two WDM MUX/DEMUXs. The following picture shows a CWDM network using a 1-channel dual fiber OADM between two CWDM MUX/DEMUXs. Signals over 1470 nm are required to be added to and dropped from the dual fiber link. On the OADM, there is usually one port for input and one port for output. The OADM can be regarded as a length of fiber cable in the fiber link. The point is the one or more strand of signals is added or dropped when the light goes through the OADM.
Summary
OADM is still evolving, and although these components are relatively small, they are immeasurable in the future. Optical Add-Drop Multiplexer (OADM) is used for multiplexing and routing different channels of fiber into or out of a single fiber. The CWDM OADM is designed to optically add/drop one or multiple CWDM channels into one or two fibers.

How to Use OADM in WDM Network ?

OADM is a cost-effective and easy to use passive fiber optic component, which can provide easy to build and grow connectivity environment for WDM network.

OADM is a cost-effective and easy to use passive fiber optic component, which can provide easy to build and grow connectivity environment for WDM network.Optical add-drop multiplexer is one of the key devices to implement such optical signal processing. Use of OADM makes it possible to freely add or drop signals with arbitrary wavelengths over multiplexed optical signals by assigning a wavelength to each destination.this article ,Let us introduce how to use OADM in WDM Network?

Inside an OADM

A traditional OADM consists of three parts: an optical demultiplexer, an optical multiplexer and between them a method of reconfiguring the paths between the optical demultiplexer, the optical multiplexer and a set of ports for adding and dropping signals. The multiplexer is used to couple two or more wavelengths into the same fiber. Then the reconfiguration can be achieved by a fiber patch panel or by optical switches which direct the wavelengths to the optical multiplexer or to drop ports. The demultiplexer undoes what the multiplexer has done. It separates a multiplicity of wavelengths in a fiber and directs them to many fibers.


Main Function and Principle of OADM

For an OADM, “Add” refers to the capability of the device to add one or more new wavelength channels to an existing multi-wavelength WDM signal while “drop” refers to drop or remove one or more channels, passing those signals to another network path. The OADM selectively removes (drops) a wavelength from a multiplicity of wavelengths in a fiber, and thus from traffic on the particular channel. It then adds in the same direction of data flow the same wavelength, but with different data content. The main function of OADM function is shown in the following picture. This function is especially used in WDM ring systems as well as in long-haul with drop-add features.

How to Connect OADM With WDM MUX/DEMUX

In most cases, OADM is deployed with CWDM or DWDM MUX/DEMUX. It is usually installed in a fiber optic link between two WDM MUX/DEMUXs. The following picture shows a CWDM network using a 1-channel dual fiber OADM between two CWDM MUX/DEMUXs. Signals over 1470 nm are required to be added to and dropped from the dual fiber link. On the OADM, there are usually one port for input and one port for output. The OADM can be regarded as a length of fiber cable in the fiber link. The point is the one or more strand of signals is added or dropped when the light goes through the OADM.


Summary

OADM is still evolving, and although these components are relatively small, they are immeasurable in the future.Optical Add-Drop Multiplexer (OADM) is used for multiplexing and routing different channels of fiber into or out of a single fiber. The CWDM OADM is designed to optically add/drop one or multiple CWDM channels into one or two fibers. Fiber-Mart provides a series of OADM modules which can be Customized. For more information, welcome to visit www.fiber-mart.com or contact me by e-mail: service@fiber-mart.com

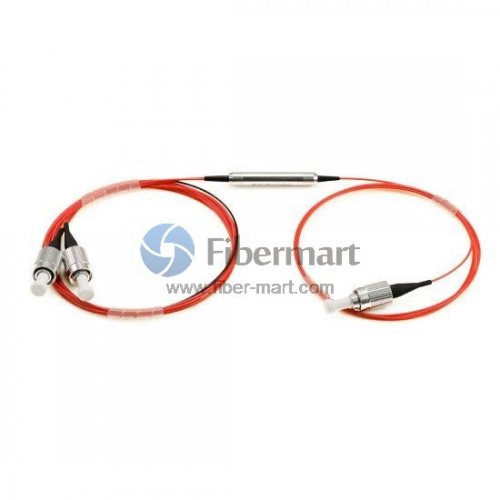

WHAT IS OPTICAL CIRCULATOR ?

With the development of advanced optical networks, applications of optical circulators are expanding rapidly and new functionality and applications are emerging quickly.

With the development of advanced optical networks, applications of optical circulators are expanding rapidly and new functionality and applications are emerging quickly. Because of its high isolation of the input and reflected optical powers and its low insertion loss, optical circulators are widely used in advanced communication systems and fiber-optic sensor applications.

What is Optical Circulator?

An optical Circulator is a non reciprocal device allowing for the Routing of Light from one Fiberto another based upon the direction of the light propagation.

Optical circulators enable the routing of light from one Optical Fiber or Waveguide to another based upon the direction of light propagation. A circulator has at least three optical ports. These ports can be accessed in such order that when a light beam is caused to enter into an optical port, this light-beam after passing through the circulator to exit from a next optical port. The light enters the circulator through a first Port and exits through a second port. Another light that enters the second port exits through a third port and so on. Since the optical circulator is an inherently non-reciprocal device, the light never goes to other ports. Optical Circulator is a passive optical component that can be used to achieve bi-directional transmission over a single fiber in WDM optical networks. It is widely implemented in equipment such as Dispersion Compensation Modules (DCMs), Optical Add-Drop Multiplexers (OADMs), Optical Time-Domain Reflectometers (OTDRs), optical amplifiers, and fiber optic sensors.



Principle of Optical Circulator

Fiber optic circulators are non-reciprocal optics, which means that changes in the properties of light passing through the device are not reversed when the light passes through in the opposite direction.a special fiber-optic component that can be used to separate optical signals that travel in opposite directions in an optical fiber, analogous to the operation of an electronic circulator. An optical circulator is a three-port device designed such that light entering any port exits from the next. This means that if light enters port 1 it is emitted from port 2, but if some of the emitted light is reflected back to the circulator, it does not come out of port 1, but instead exits from port 3.


Applications of Optical Circulator

Optical circulator can be utilized to achieve bi-directional optical signal transmission over a single fiber. It is a very important optical component which is commonly used in passive optical network, (wavelength division multiplexing) WDM network, polarization mode dispersion, chromatic dispersion compensation, optical add-drop modules (OADM), optical amplifiers, optical time domain reflectometry (OTDR) and fiber sensing applications. Fiber-Mart provides both polarization insensitive and polarization maintaining optical circulators. These optical circulators feature with high isolation, low insertion loss, and excellent environmental stability etc. Customers can buy these circulators directly in this category or Make Customized Orders.



Main Features of Optical Circulator

  • High isolation
  • Low insertion loss
  • Low polarization dependent loss
  • Low polarization mode dispersion
  • Excellent environmental stability



From this article,you may have a certain understanding of the optical circulator. for more detailed information about optical circulator, welcome to visit www.fiber-mart.com or contact us :Service@fiber-mart.com
