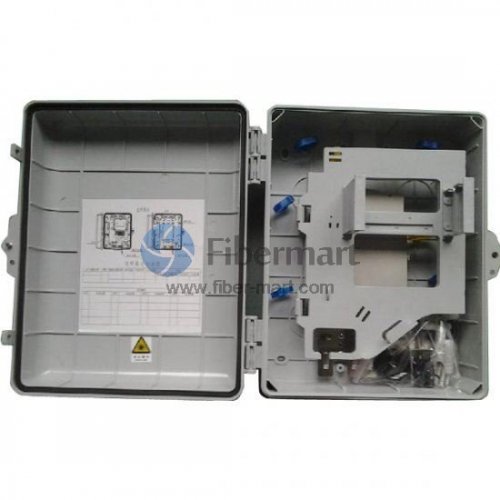

Fiber Optic Splitter Termination Box for FTTH Applications

Fiber optic splitter termination box provides a cost-effective solution for FTTH applications. Nowadays some manufacturers provide this type of box with pre-installed fiber splitters, adapters, splice trays or pre-terminated pigtail assemblies, which help to reduce installation time and cost and satisfy different requirements of customers. Today, this post mainly focuses on the basics of splitter termination box .



Fiber Optic Splitter Termination Box Overview

Fiber optic termination box generally refer to the box shape fiber optic management products used to protect and distribute the optical fiber links in FTTH Network. Usually the fiber optic box includes the fiber optical patch panels and fiber optic terminal box. Fiber optic patch panel is bigger size, fiber optic termination box is smaller. Actually there are too many fiber optic boxes and fiber management devices, they are hard to count the types, many manufacturers will make the fiber optic boxes according to their own design and they may give the fiber optic boxes different names and model numbers.

The fiber optic boxes panels can be pre-installed with various kinds of fiber optic adapters, these adapters are the interface via which the fiber box will connect the external devices. Smaller size fiber optic box, the terminal box, is also used for fiber optic distribution and organization. Our typical fiber terminal box are with 12 ports or 24 ports, with a size of 270mm*137mm*45mm. the fiber optic box are made of cold rolling steel and the surface of the box use the technique of dim blowing plastic. This type fiber optic box is typically installed with FC or ST adapters on the panel. This fiber terminal box could be installed on the wall or put in horizontal line.


Fiber Terminal Boxes

Besides fiber patch panels, one can also count on fiber terminal boxes for fiber distribution and organization. While typical fiber terminal boxes are with 12 ports or 24 ports, 8 ports, 36 ports, 48 ports and 96 ports fiber are available in the markets now. They are often installed with FC or ST adapters on the panel, either on the wall or put in horizontal line.

According to the design, FTB can be further divided into wall mount type and rack mount type.

The wall mount fiber termination boxes are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.



Fiber Terminal Boxes

Besides fiber patch panels, one can also count on fiber terminal boxes for fiber distribution and organization. While typical fiber terminal boxes are with 12 ports or 24 ports, 8 ports, 36 ports, 48 ports and 96 ports fiber are available in the markets now. They are often installed with FC or ST adapters on the panel, either on the wall or put in horizontal line.

According to the design, FTB can be further divided into wall mount type and rack mount type.The wall mount fiber termination boxes are designed for either pre-connectorized cables, field installation of connectors, or field splicing of pigtails. They offer an ideal solution for building entrance terminals, telecommunication closets, main cross-connects, computer rooms and other controlled environments.

Moreover, in terms of installation environment, there are indoor FTB and outdoor FTB.

Indoor fiber termination box acts as the transition point between the risen cable and the horizontal cable, in this way, it provides operators much more flexibility when managing cables. Besides, indoor FTB makes it possible to leave space for overlength and terminated fibers, as well as for fiber splicing.

The outdoor fiber terminal boxes are environmentally sealed enclosures to distribute fibers for FTTX networks. They are also designed for fiber splicing, termination, and cable management.

Features and Benefits

Fiber optic splitter termination box enables service providers to accelerate their deployments more effectively and is an ideal solution when deploying networks in FTTH applications. And it offers increased efficiency within distinct FTTX network applications. Featuring a compact solution for wall mounting, these termination boxes provide a significant space savings while maintaining hand access to connectors. Following are the features and benefits of deploying fiber optic splitter termination box.

  • Provide a small footprint for splitting, splicing and terminating and are environmentally rated for indoor or outdoor use.
  • Available in several types, each box can equip with splice tray allowing for an input splicing option.
  • Accept standard splitters and splitters can be easily added after the termination box has been installed. And it can accommodate 1×4, 1×8, 1×16, 1×32 fibers, up to 64 fibers.
  • Its small size and flexible mounting options offer easy integration into cell sites and huts, providing on-demand capacity for wireless back haul applications.
  • Offer an economical solution for applications where larger sized FDHs (fiber distribution hubs) may be unfeasible.

Conclusion

Fiber termination box nowadays plays an indispensable role in the field of communication network with greater reliability and flexibility. The continual expansion of broadband networks and the resulting set up of fiber to the home (FTTH) infrastructures make network organizers adopt powerful management and planning systems. Fiber optic splitter termination box is a small part of this system. Fiber -MART can provides comprehensive solutions, any question pls do not hesitate to contact me at service@fiber-mart.com

Advertisements

Fiber Optic Enclosures In Cabling Systems

Fiber-optic cabling systems have a few specialized components, including fiber optic enclosures and connectors.

Fiber optic enclosure is a box to load fiber optic patch panel/fiber optic cassettes and other accessories in to provide a cable management solution for fiber cabling. Fiber enclosure ensures a tidy cabling environment and protects fragile fibers from outside damage. Also, the elaborate design of various types of fiber optic enclosures allows different deployment scenarios and better caters for specific requirements. Fiber enclosure rack mount or fiber enclosure wall mount enclosure provides optional mount applications.





What Is Fiber Optic Enclosure?

Fiber enclosure/fiber spice box may refer to an empty box or an intact unit after installation. A loaded fiber optic box contains installed assembly units to connect and separate various fiber optic cables. Usually fiber optic enclosure unloaded comes with 1U/2U/4U available, which can house corresponding quantity of fiber optic cassettes or fiber patch panels. Some people mention fiber optic enclosure and fiber optic patch panel as the same thing since they are matching devices.



What to Benefit From Fiber Optic Enclosure?

Cable Management Function

  • In general, fiber enclosure functions cable management in data centers for a clean and tidy cabling environment.
  • It houses and fix fiber optic patch panel or fiber optic cassettes in a box for better management and protection.
  • Fiber optic enclosure inside accessories such as fiber slack management spool provides a proper bend radius for cables and helps to route, manage and store fibers.
  • Different types of adapters installed-in enable various incoming fibers to be terminated in high density and protected them from damage.





Types of Fiber Optic Enclosures



Patch panels come in many shapes and sizes. Some are mounted on a wall and are known as surface-mount patch panels. Others are mounted in a rack and are called rack mount patch panels. Each type has its own benefits. Surface mount panels are cheaper and easier to work with, but they can’t hold as many cables and ports. Surface-mount patch panels make good choices for smaller (fewer than 50 drops) cabling installation. Rack-mount panels are more flexible, but they are more expensive. Rack mount patch panels make better choices for larger installations. Patch panels are the main products used in LAN installations today because they are extremely cost-effective and allow great flexibility when connecting workstations.



In addition to the standard fiber patch panels, a fiber-optic installation may have one or more fiber distribution panels, which are very similar to patch panels in that many cables interconnect them. However, in a distribution panel, the connections are more permanent. Distributions panels usually have a lock and key to prevent end users from making unauthorized changes. Generally speaking, a patch panel is found wherever fiber optic equipment hubs, switches, and routers are found. Distribution panels are found wherever multifiber cables are split out into individual cables. Here is the example of 24 port patch panel.



Conclusion

Wall-mount available unloaded, as well as having the capability to become a full-splice enclosure with mechanical terminations. Fiber-MART supplies two types of fiber splice closures which are the horizontal (inline) type and the vertical (dome) type. Both are made of excellent engineering plastics to be waterproof and dust proof. And with various ports types, they can fit different fiber optic core numbers. More details about splice closure. Any question pls feel free to contact me at service@fiber-mart.com

Why Should You Choose a Wall Mount Rack & Cabinet ?

Network racks are essential for storing your equipment in an organized, safe and efficient manner.



Rack solutions allow you to house many IT components in a smaller amount of space, helping you use storage area more efficiently, while also protecting network equipment and maintaining an organized environment. Network racks organize IT equipment into standard-sized server rack cabinets for greater efficiency throughout the data center. Rack styles range from open-frame racks consisting of two or four mounting rails (called posts) without sides or doors to lockable rack cabinets with rails, front and rear doors and side panels.

  • The height of a network equipment rack is measured in units designated by the letter U (each rack unit is 1.75 inches/44.45 mm) high; server cabinets are available with capacities ranging from 2U to 58U.
  • Choose floor-standing racks with rolling casters or wall-mount racks for applications where floor space is limited or extra security is important





Why are Network Racks required?

Network Racks are an important component of the structured cabling system.Network racks are required for neatly, efficiently and safely holding all the networking equipments. If there are no network racks/ patch panels, then the cabling would look cluttered. Network racks can hold many components in a relatively smaller space, which enables one to utilize the available storage space very efficiently. Network racks are required for the physical safety of all the equipments kept within, as most of them could be locked and access denied for unauthorized personnel.Network racks are also required for improving the health of the networking equipments stored inside. For example, when the cables are taken carefully and neatly through the cable managers in the racks, there is little chance of data loss due to excessive cable bends. Also, the cooling fans in the network racks provide additional cooling to prevent any damage to the networking equipments kept inside them, due to over heating.



The benefits of a wall mount rack



These racks do not take up space on the floor.

Though this benefit may seem obvious, it is important. When you are working in a small space, you need to use the space that you do have as efficiently as possible. Wall mount racks allow you to optimize your work space by keeping IT equipment off of floors and desks.



They are easier to setup and install than other types of rack solutions.

Most small or home-based businesses do not have in-house IT solutions and may choose to install network racks on their own. With a basic understanding of how these racks work, you can setup and install wall mount racks yourself.



Wall mount server racks and cabinets save floor space and are ideal for smaller installations or to house system distribution points.Open-frame “rack” styles are great for controlled spaces such as utility rooms. Fully enclosed “cabinet” style models provide security to protect equipment in more open spaces from tampering, dust, and other hazards.Looking for enhanced rear access to equipment and wiring; select from styles that have hinged, or swing, center sections vs. being affixed directly to the wall.



Conclusion

No matter what rack solution you choose, it is important that you maintain network security and proper cable management. Fiber-Mart provides comprehensive solutions for both Wall and Floor applications as well as buried directly underground. And Fiber-Mart Cable Management are suitable for specific layout requirements and provides ideal solution for the distribution of cables and access to power, data and communication services on the wall and under the floor and for pole.any question pls feel free to contact me at service@fiber-mart.com

FIBER OPTIC COLLIMATORS

Fiber collimator is an effective passive optical component used for laser beam collimating. and Fiber optic collimators come in many forms.

There are more things to consider  when it comes to purchasing collimators .

  • LENS TYPE
  • SIZE DOES MATTER
  • SPHERICAL OR CHROMATIC ABERRATION
  • SINGLEMODE OR MULTIMODE
  • PAIRING, TARGETING, OR LASER PIGTAILING
  • 0 DEGREE OR 8 DEGREE
  • ALTERNATIVES



Introduction to Fiber Collimator

Fiber Optic Collimators are devices used to expand and collimate the output light at the fiber end, or to couple light beams between two fibers. They are a module that combine a fiber and a lens, and has a function that produces parallel beams. We offer a range of fixed and adjustable fiber optic collimation packages for collimating a laser beam from the end of an FC/APC, FC/PC, or SMA connectorized fiber while maintaining diffraction-limited performance at the design wavelength.  They are available with different wavelengths (850 nm, 980 nm, 1060 nm, 1310 nm, 1550 nm) or fiber options (SM fiber, MM fiber, PM fiber, and LMA fiber, etc).

A fiber collimator is a device that narrows a beam of particles or waves. It can either cause the directions of light to become more aligned in a specific direction, or cause the spatial cross section of the beam to become smaller. Usually, fiber collimator is required to naturally transform diverging lights from an optical fiber to a parallel beam of light. It consists a single-mode or multimode fiber pigtail and a collimating lens. Collimator can also be used to calibrate other optical devices to check if all elements are aligned on the optical axis.


Characteristics

  • Low Insertion Loss and Return Loss
  • Low Back Reflection
  • High Extinction Ratio
  • Low Insertion Loss
  • Wide Operating Wavelength and Temperature
  • Scientific design with serious processing art


Applications

  • Optical cable jumper or pigtail cable
  • Laser Beam Collimating
  • Optical cable jumper or pigtail cable
  • PM Isolator and PW WDM
  • Laser Beam Collimating



How Does It Work?

When placing the fiber end on the collimator lens, the light will be aligned to a parallel direction. Then through a slight adjustment of fiber end position, the working distance is obtained. The working distance of fiber collimator is related to the distance between fiber end and lens. According to the actual demands, we can determine the parameters of fiber collimator, such as distance between fiber end and lens, beam radius, accuracy, to achieve better performance.


Conclusion

Selecting the right type of fiber collimator is essential to the performance of network, you should consider your project requirements as important factors. Fiber-MART offer a range of fixed and adjustable fiber optic collimation packages for collimating a laser beam from the end of an FC/APC, FC/PC, or SMA connectorized fiber while maintaining diffraction-limited performance at the design wavelength. For more information, welcome to visit www.fiber-mart.com or contact me by E-mail: service@fiber-mart.com

Direct Attach Cable(DAC) VS Active Optical Cables(AOC)

As one kind of optical transceiver assembly, Active Optical Cables (AOC) and Direct Attach Cables (DAC) are a alteration of optical transceiver, they are used to connect switches with one another when creating a stack or switches to routers or servers.

A Direct Attach Cable (DAC) can be produced as passive or active. As the passive DAC has no active components, it offers a direct electrical connection between corresponding cable ends. This method can also be completed by an active DAC, which is considered active because there are extra electronics embedded inside the connectors. Therefore it helps to advance signal quality, offering a longer cable distance. The DAC is a fixed assembly that can be bought in several lengths for short distances of up to 15 Meter.They are suitable for short distances, making them ideal for highly cost-effective networking connectivity within a rack and between adjacent racks.

AOC cable is always active. It has two types of connectors combined with fixed optical fibers with a similar function as optical transceivers. In respond to the demand for a higher data bandwidth, active optical cable (AOC cable) has came into being to satisfy different cloud computing applications. Active optical cable is a term used to describe a cable that mates with standard electrical interfaces. The electrical-to-optical conversion on the cable ends is adopted to enhance the transmission speed and distance of the cable without sacrificing compatibility of standard electrical interfaces.

Both DAC and AOC have their particular advantage and disadvantage.

Growth of fiber technology, someone may believe that copper technology is obsolete. This is not accurate for direct attach copper cables. Indeed, a direct attach copper cable still has its advantages:

With the growth of copper cable technology, in Today’s market,DAC can support higher data rates than old copper interfaces—from 4Gbps to 100Gbps per channel.  reduce the overall power consumption and heat dissipation, which help network operators save cost.DAC cables are similar and hot swappable just like fiber optic modules. Supporting such multiple protocols from Gigabit to 100G Ethernet,Direct Attach Cables (DAC) are a cost effective solution compared to optical transceivers.

DAC cables have the potential to Another factor is that DAC cable is robust and does not need patch panels or additional cables when connected to devices, as is the case with an optical module. The modules on both ends make them sturdy and reliable as well as space-saving.

dac

Though there are a few disadvantages of using direct attach cables: One of it is that direct attach (DAC) copper cables are more thick and massive than AOC cables, making it difficult to be managed. Additionally, since the electrical signals are used, direct attach copper cables are susceptible to the effects of electromagnetic interference (EMI), such as unwanted responses, degradation, or complete system failure.

AOC provides more advantages, such as lighter weight, high performance, low power consumption, low interconnection loss, EMI immunity and flexibility.

AOC

AOCs are a substitute to optical transceivers which exclude the detachable interface between transceiver modules and optical cables. It offers a number of advantages over direct attach copper (DAC) cables. due to its material, AOC weighs less than a DAC cable. optical fiber uses light signals, AOC is immune to electromagnetic interference. the disadvantage of AOC is that it may be a slight more expensive for customers.

Whatever believe it or not, Nothing can be perfect, so do the DAC cables. Although they can save space and cost for data center managers, the drawbacks still exist. As the main element of DAC cable is copper, it is heavy and bulky. the more important, if DAC cables are deployed in high volume, the cable diameter and cable stiffness are another problem that should be considered. In this case, active optical cables (AOC cables) seem to be a better choice, for they are made of thinner and more pliable optical cable.

Fiber-Mart supplies various kinds of high speed interconnect DAC & AOC cable assemblies including 10G SFP+ Cables, 40G QSFP+ Cables, and 120G CXP AOC Cables. All of our cables can meet the ever growing need to cost-effectively deliver more bandwidth, and can be customized to meet different requirements. For more information,pls visit www.fibermart.com. if you have any requirements , pls not hesitate to contact with us service@fiber-mart.com



Comparing 40G &100G Transceivers modules

As things stand, the trend for high-speed data transmission and high-bandwidth is overwhelming.

now, whether you believe it or not, prepared or not prepared, 40G and 100G have already on the way. To upgrade to 40G or skip it and directly migrate to 100G has become a question for many data center mangers and IT engineers

The growth in 100G comes at the expense of 10G and 40G interfaces. Infonetics says that 10G in carrier networks “is beginning a long decline after an epic 15-year run.”Meanwhile, the market for 40G is “vaporizing,” according to the market research firms.“40G transceivers are ramping up hard as data centers deploy 40GbE, particularly as a high-density 10G interface via breakout cables. 40G QSFP demand growth over single-mode fiber is primarily a result of large shipments to Internet content providers Microsoft and Google,” said Andrew Schmitt, research director for carrier transport networking at IHS Infonetics.

40G and 100G Transceiver Technical Features

40G and 100G have two main types in the data center. Short reach (SR4) for ~100 meters transmission on multimode fiber and Long Reach (LR4) for 100 meters to 10km using single-mode fiber. We can use SR/LR transceivers to connect compute clusters and various switches layers in data centers. 40G transceivers are typically deployed as four 10G lanes in QSFP or CFP MSAs. 40G SR transceiver uses 8 multi-mode fibers, VCSEL lasers, and the QSFP MSA. Using edge-emitting lasers and multiplexes the four 10G lanes onto two single-mode fibers, 40G LR4 reach a 10km distance per CFP MSA, CFP/2 or QSFP28 MSAs. The 40G SR4 and LR4 transceivers can be used in the same QSFP switch port without any issues.

40G,In today’s market, 40G products mainly include 40GBASE-SR4 and 40GBASE-LR4 QSFP+ modules and 40G AOCs. QSFP+ supports both 40G links between racks and high-density 10G links within the rack, especially the 40G QSFP+ breakout AOC which is an ideal solution for 40G migration.“40G transceivers are ramping up hard as data centers deploy 40GbE, particularly as a high-density 10G interface via breakout cables. 40G QSFP demand growth over single-mode fiber is primarily a result of large shipments to internet content providers Microsoft and Google,”said Andrew Schmitt.

40

100G SR10 transceivers use 20 multi-mode fibers, VCSELs and the CXP MSA, the 100G LR4 transceivers uses CFP form and 2 single-mode fibers.The market for 100G data center optics is accelerating, but it has yet to be turbocharged by widespread data center deployment in the way 40G QSFP optics have.

The market for 100G data center optics is accelerating, but it has yet to be turbocharged by widespread data center deployment in the way 40G QSFP optics have.The data center likely will be the engine of any overall growth in optical transceiver sales over the next several years. Data centers now represent 65% of the overall telecom and datacom market for 10G/40G/100G optical transceivers. 100

100G is ready here. Tens of thousands of 100G Ethernet links deployed in core routers and carrier switches. Vast majority are CFP modules and CFP2 deployments are now starting. In addition,100G is rapidly expanding. For instance, new optical standards for the data center (100G SR4, CWDM4, PSM4) and new higher density 100G module form factors like CFP4 and QSFP28 are on the way. High port-count 100G switches are being designed and many 100G modules will be used to support high-density 10G and 25G. It is said that 100G and 4x 25G deployments are expected to grow substantially starting in 2015. 100G products mainly include 100GBASE-SR10 and 100G LR4 CFP/CFP2/CFP4 and 120G AOCs. Additionally, QSFP28 as the 100G module form factor of choice for new data center switches is also launched.

If you ask me why 40G Ethernet will be obsolete? The short answer is “cost”. From the technical point, The primary issue lies in the fact that 40G Ethernet uses 4x10G signalling lanes. On UTP, 40G uses 4 pairs at 10G each. Early versions of the 40G standard used 4 pairs, but rapid advances in manufacturing developed a 4x10G WDM on a single fiber optic pair. Each 40G SFP module contains a silicon chip that performs multiplexing so that the switch see 40 gigabits in and 40 gigabits out. It’s similar to Coarse Wave Division Multiplexing when using fiber. When you buy a 40G cable or QSFP, you are paying for the cost of the chip and software, plus the lasers, etc. When using 25/50/100G, the “lane speed” is increased to 25 gigabits per second. For 100G Ethernet, there are four 25G signalling lanes. It’s cheaper to buy 100G with four lanes rather than 40G with a four-lane MUX.

40G/100G transceivers development supports this growth with smaller module form factors for higher port density, lower power consumption per bit and lower cost per bit.

Fiber-MART offers several 40G and 100G Transceiver modules to support the transmission of very high-speed digital signals, providing a bandwidth of 40G or 100G, with distances reaching up to 40 kilometers. These include 40G CFP transceiver and 100G CFP transceivers as well as 40G QSFP+ transceivers. For more informations, you can visit www.fiber-mart.com.pls feel free to contact us for any question. E-mail : service@fiber-mart.com

Understanding CWDM DWDM MUX/DEMUX

In the communications market,  Wavelength Division Multiplexing (WDM) is a technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths (i.e., colors) of laser light. This technique enables bidirectional communications over one strand of fiber, as well as multiplication of capacity.

The WDM is divided into three types (WDM, CWDM and DWDM) on the basis of wavelength difference among the three.

CWDM Mux/Demux

Dense Wavelength Division Multiplexing (CWDM) networks need multiplexer/demultiplexer (MUX/DEMUX) modules to combine and split wavelength channels at standard ITU grid. These modules are generally called CWDM MUX/DEMUX.

The CWDM Mux/Demux is a universal device capable of combining nine optical signals into a fiber pair. It is designed to support a broad range of architectures, ranging from scalable point-to-point links to two fiber-protected rings. The market-standard LGX™ packaging of the CWDM Mux/Demux enables easy deployment in existing LGX-compatible frames or WaveReady 3500F shelves.

The CWDM Mux/Demux is designed to interoperate with both the WaveReady line of transponder and optical regenerator solutions as well as CWDM transponders and small form-factor pluggables (SFPs) used in widely available transmission equipment. With billions of field operating hours, the industry leading Lumentum optical multiplexing technology offers unparalleled reliability and leading-edge performance.

CWDM Mux/Demux is a flexible network solution for WDM optical networks. At most 18 full-duplex wavelengths can be added over a single fiber trunk which greatly alleviates fiber exhaustion. With low insertion loss and high stability, CWDM Mux/Demux is applied to many operations, such as CATV links, WDM systems, test and measurement, metro and access networks, FTTH networks, etc. The deployment of CWDM Mux/Demux is transparent and clear. Its compact form factor enables a much easier manipulation. Only coarse wavelengths can be transmitted over the fiber which reduces the WDM system cost.

Three kinds of CWDM Mux/Demux are widely used in the application. They are 1RU 19″ rack chassis CWDM Mux/Demux, half 19″/1RU CWDM Mux/Demux and splice/pigtailed CWDM Mux/Demux. CWDM Mux/Demux in 19 inch rack mount package is often used for CWDM, EPON and CATV network. Half 19″/1RU CWDM Mux/Demux is packed in LGX box using thing film coating and non-flux metal bonding micro optics packaging. Splice/pigtailed CWDM Mux/Demux is packed in the ABS box package based on standard thin film filter (TFF) technology.

DWDM Mux/Demux

Dense Wavelength Division Multiplexing (DWDM) networks need multiplexer/demultiplexer (MUX/DEMUX) modules to combine and split wavelength channels at standard ITU grid. These modules are generally called DWDM MUX/DEMUX.

DWDM Mux/Demux conveys optical signals in a more dense wavelength. It is especially used for long distance transmission where wavelengths are highly-packed together. The maximum delivered wavelengths can reach up to 48 channels in 100GHz grid (0.8nm) and 96 channels in 50GHz grid (0.4nm). DWDM Mux/Demux uses a reliable passive WDM technology that achieves low insertion loss. And it provides a solution for adding WDM technology to any existing network device. Applications like point-to-point DWDM fiber optimization, linear add/drop DWDM fiber optimization, external optical monitoring are typically using DWDM Mux/Demux module.

The functionality of DWDM (Dense Wavelength Division Multiplexing) resembles to the one of CWDM. The DWDM channel spacing is 0.8/0.4 nm (100 GHz/50 GHz grid). This small channel spacing allows to transmit simultaneously more information. Currently a restriction on wavelengths between 1530 nm and 1625 nm exists which corresponds to the C and L band. DWDM wavelengths are more expensive compared to CWDM caused by the need of more sophisticated transceivers.

Likewise, 1RU 19″ rack chassis DWDM Mux/Demux, Half 19″/1RU DWDM Mux/Demux and splice/pigtailed DWDM Mux/Demux are three divisions of DWDM Mux/Demux modules. The first type is in 19 inch rack mount package used for long-haul transmission over C-band range of wavelengths. The second one is in LGX package used for PDH, SDH/SONET, Ethernet services transmission. The last one is in ABS box package and its pigtails are labeled with wavelengths.

Comparison Between CWDM and DWDM System

The difference between CWDM and DWDM lies in the channel spacing between neighbored wavelengths, for CWDM 20 nm and for DWDM 0.8/0.4 nm (using 100 GHz/50 GHz grid). this advantage for an efficient CWDM/DWDMintegration. Thereby up to sixteen DWDM channels are transmitted simultaneously in only one CWDM channel (1530 nm and 1550 nm). Thus an easy-to-realize channel extension can be achieved under continued use of existing CWDM components.

Price differenceCWDM system carries less data, but the cabling used to run is less expensive and less complex. A DWDM system has much denser cabling and can carry a significantly larger amount of data, but it can be cost prohibitive, especially where there is a need for a large amount of cabling in an application.

Transmission distanceDWDM system is designed for longer distance transmission as stated above. They can transmit more data over a significantly larger run of cable with less interference than a comparable CWDM system. If there is a need for transmitting the data over a long range, DWDM system will likely be the best in terms of functionality of the data transmittal and the lessened interference over the longer distances that the wavelengths must travel.

CWDM system cannot transmit over long distances because the wavelengths are not amplified, and therefore CWDM is limited in its functionality over longer distances. Typically, CWDM can travel anywhere up to about 100 miles (160 km), while an amplified DWDM system can go much further as the signal strength is boosted periodically throughout the run. As a result of the additional cost required to provide signal amplification, the CWDM solution is best for short runs that do not have mission critical data.

To sum up, before buying We should first understand the differences between them,Fiber-Mart provides a series of CWDM DWDM MUX/DEMUX modules with as more as 18 channels (20nm spaced) in simplex or duplex configurations. All the CWDM  DWDM modules are available with three types of packaging: ABS Pigtailed Box, Rack Chassis and LGX Cassette. For more details, please visit www.fiber-mart.com. Please not hesitate to contact us for any question. E-mail: service@fiber-mart.com
