Fiber optic splicing is important for fiber connections. Fiber Optic Splice Closure is a fiber management product typically used with outdoor fiber optical cables. It provides space and protection for the fiber optic cable splicing and joint. Fiber splice closure is used for aerial, strand-mount FTTH “tap” locations where drop cables are spliced to distribution cables.
What is a fiber Optic Splice Closure?
In fact, except underground application, fiber optic splice closure is also used for aerial, strand-mount FTTH “tap” locations where drop cables are spliced to distribution cables. It is usally used with outdoor fiber optic cables which provides space for the outdoor fiber optic cables to be spliced together. The fiber optic splice closures and the fiber trays inside will protect the spliced fiber and the joint parts of the outdoor fiber cables.
Fiber optic splice enclosures are used to protect stripped fiber optic cable and fiber optic splices from the environment, and they are available for indoor as well as outdoor mounting.Outdoor fiber optic enclosures are usually weatherproof with watertight seals.In a typical wall-mounted splice enclosure, fiber optic cable is supported by cable ties, and the cable strenght member is securely fastened to the enclosure’s support. Metallic strenght members must be grounded securely.the cable jacket(sheath) stops at the splice enclosure’s cable ties. Optical fiber tubes, individual tight buffered fibers, or pigtails are supported by the tube brackets and continue to the splicing trays.
Key Features of Fiber Optic Splice Closures
Fiber splice closures are made from special industrial grade, high tension plastic with a reliable moisture barrier. They are also optimized to resist aging of the material due to factors in the natural environment such as ultraviolet light.
- The box adds aging-resistant in imported high tensile construction plastic out-faster is made up of stainless steel
- Overlap structure in splicing tray is easy to install
- Suitable for ordinary fiber and ribbon fiber
- Perfect leak proofness
- Perfect and reliable sealing operations
- Fiber-bending radium guaranteed more than 40mm
- Full accessories for convenient operations
- Fiber optic splice closure can be used repeatedly
- For aerial, and direct buried applications
Generally the fiber optic splice closures are horizontal types and dome type (also called vertical type). Horizontal types are used more often than vertical type (dome type) closures.

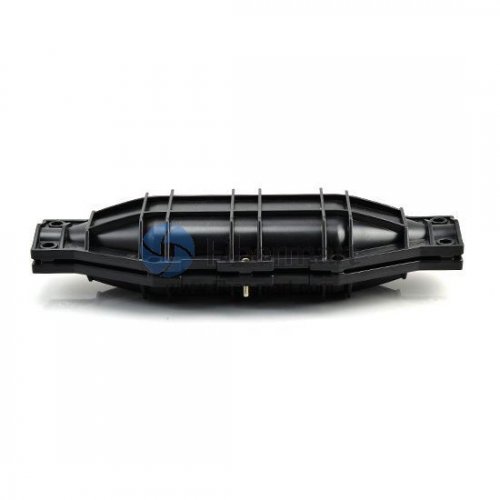

Horizontal types splice closure look like a flat or cylindrical box which provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, buried, or for underground applications. Most horizontal fiber optic splice closure can fit hundreds of fiber connection. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.

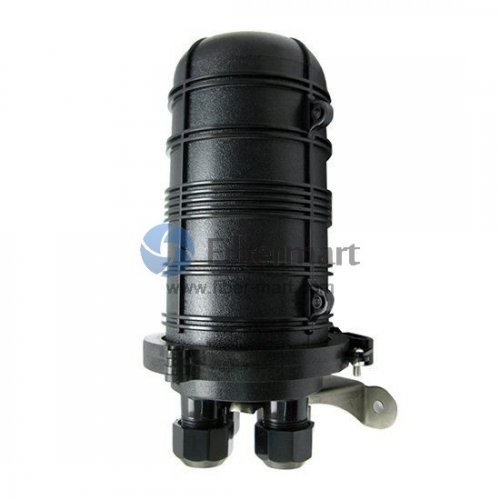

Vertical type of fiber optic splice closure looks like a dome. This is why they are also called dome type. They meed the same specification as the horizontal types. They are usually designed for buried applications.
Fiber-Mart supplies two types of fiber splice closures which are the horizontal (inline) type and the vertical (dome) type. Both are made of excellent engineering plastics to be waterproof and dust proof. And with various ports types, they can fit different fiber optic core numbers.Fiber splice tray, fiber distribution box and fiber optic enclosure are also offered in conjunction with the splice closures, promoting a safe and well-managed environment for fiber optic splices. Custom service is available according to your requirement.any question pls feel free to contact us at firstname.lastname@example.org
