What is Armored Fiber Optic Patch Cables

An armored fiber patch cable is a fiber optic patch cable with stainless armor inside the cable jacket to protect the central unit of the cable. It is considered to be an advanced or structures improved fiber optic patch cable. Because of the special structures that the armored fiber optic patch cable has, it makes the armored fiber patch cord shares some special features compared with the standard fiber patch cables, which can be listed below:

Armored fiber optic patch cable retain all the features of standard patch cord, but they are much more strong and flexible. Because of the stainless steel armor inside, it can be resistant of high tension and pressure, even it is step by an adult person, the armored fiber optic patch cables will not get damaged. It is also almost impossible to be bent or dragged to broken. Armored fiber patch cable also shares anti-rodents features, when they are used for outdoor use, people do not need to worry about the rodent animals like rates may bite the cables and make them broken.

Usually the armored fiber optic patch cords are smaller outer diameter than the standard patch cords, this make them space saving and actually light weight. And they can be handled as easily as other electric cables. Armored fiber patch cables are with different jacket colors or jacket types like PVC, PE or OFNR and different types of termination types including SC, ST, FC, LC, MU,SC/APC,ST/APC,FC/APC,LC/APC etc.

Get the summary from the above, the armored fiber optic patch cables are designed for being used in harsh environment, in which the traditional standard fiber optic patch cable cannot fit or get good performance. It is made with special strong connector and fiber armored cable, it can protect the cable from damage caused by twist, pressure or rodent bite. Installation procedure and maintenance is also easy when use the armored fiber patch cables, which is actually an ideal choice for people who is looking for fiber optic patch cords with additional durability, protection and light weight features.

Ingellen online wholesale platform which ingellen.com supplies ranges of armored fiber optic cables for different application requirements like simplex or duplex SM9/125, OM1 62.5/125, OM2 50/125, 10G OM3 or OM4 fiber patch cables with SC, FC,ST,LC,MU,MTRJ,UPC,APC connector types. 10G OM3 fiber armored optic patch cable with 50/125 multimode is typically used in 10 Gigabit Ethernet to transmit 10G signals and the bandwidth supported is as specified IEEE802.3z. And our OM4 fiber optic patch cable assemblies are ready to meet the requirement for future 40G and 100G fiber optic networks, the flexible, light and compact features of the OM4 armored fiber patch cables makes it an ideal alternative to standard OM4 patch cables where excellent crush and kinking resistance.

Buy armored fiber optic cables no matter armored fiber patch cables or fiber armored cables from professional fiber optic cable manufacturer, fiber-mart.com.

Understanding Armored Fiber Patch Cable

by http://www.fiber-mart.com

With the development of telecommunication, demands for fiber patch cables are increasing all over the world. However, it is known to all that cables under harsh environment must be in need of better protection. Luckily, the advent of armored fiber patch cable efficiently solves the problem. As the name indicates, this type of optical cable is wrapped in a protective armor to prevent optical cables from animal bite, moisture, corrosion and other damage. Therefore, using armored fiber patch cables will greatly reduce the cost of unnecessary cable loss. This article will give you a basic introduction about the structure, types and advantages of armored optical cable.

Structure of Armored Fiber Patch Cables

Armored fiber optic cable has some basic layers. The first layer is the outer jacket made of plastic materials. It can protect the cable from the destroy of solvent and abrasion. The second layer under outer jacket is the strength member made of armored materials, such as aluminum foil, steel and kevlar. These materials are difficult to cut, bite and burn which are great protections for the optical cable. Next is the inner jacket of fiber made of protective and flame-retardant materials to support the internal optical fibers.

Types of Armored Fiber Optic Cable

Armored fiber patch cables can be divided into indoor armored optical cable and outdoor armored optical cable according to the premises.

Indoor Armored Optical Cable

This kind of optical cable includes double and single indoor armored fiber patch cables. The double armored cable has the stainless steel wire woven and stainless steel tube. On the contrary, the single armored cable does not contain the stainless steel components. Most of the indoor armored cables are deployed for building wiring applications. You may find them in walls, between floors, in plenum air handling ducts and under data center floors, etc.

Outdoor Armored Optical Cable

There are light armored and heavy armored optical cable used for outdoor applications. The light armored cable has the protective plastic jacket with the same durability and longevity of a stainless steel cable, but its weight is much lighter. The heavy armored cable is wrapped in a wire circle which can be applied for riverbed and ocean floor.

Advantages of Armored Fiber Optic Cable

There are numerous advantages of armored fiber optic cable. The flexibility and durability of armored cable are excellent which makes it the right choice for industrial purposes. Moreover, the armor materials protect the cable from damage caused by animal, human or harsh environment, thus it can be applied to places where ordinary cables can not. The armored cable can also undergo heat and high pressure of extreme conditions. Using the armored optical cable not only ensures the high speed data transmission, but also extends the life span of cables.

Conclusion

When fiber optic cables are needed for terrible conditions, a strong protection for the cable is very necessary. Therefore, to secure the data communication, armored fiber optic cable is a good solution to make the cable free from different damages. But when you operate the armored fiber patch cables, you must be careful of the freshly cut edges which are very sharp to cope with. And the budget of your project should also be taken into consideration as armored cables are generally more expensive than the common ones.

What fiber Patch Cables should we use in a harsh environment?

With the rapid development of optical communication, more and more fiber optic cables are increasingly used in different environments. Under harsh conditions, the ruggedness and durability of common fiber optic cables cannot meet operators’ requirements, especially for exceptional demanding applications. This post mainly introduces IP67 waterproof fiber optic cable & armored Fiber Patch Cablesuitable in harsh environment. All the types of waterproof fiber optic cables are available in Fiber-Mart.

The two fiber patch cables are armored fiber patch cable and IP67 fiber patch cable. As most fiber cable failures are usually caused by fiber breaks and contaminants, the fiber cable and the termination points of the fiber links should all be well protected. And the two types of fiber cable can perfectly meet most requirements of harsh cabling environment.

IP67 Fiber Patch Cable

IP67 waterproof fiber optic patch cable can be used in harsh environment, providing more convenience and extra protection for network systems. Even if there are various patch cables available on the market, which can be used in different applications, in most cases, they can only be installed in relatively protected environment where stay away from liquid, chemicals and animal biting. What if I want to use it in military network or extremely harsh environment? The following text will introduce a saviour in hostile surroundings—IP67 waterproof fiber optic patch cable.

Overview of IP67 Waterproof Fiber Optic Patch Cable

Waterproof fiber optic patch cable is mainly used in outdoor connection. It is designed with a stainless steel strengthened waterproof unit and armored outdoor PU jacketed cables. It can resist high temperature, and is suitable for use in harsh environments. Similar to standard fiber optic patch cables, waterproof fiber cables also have various types, including simplex, duplex, 12 fibers, 24 fibers, and various kinds of connect interfaces are optional, such as LC, SC, FC, ST, MPO, etc.

IP67 waterproof fiber cable meets ODVA (Open DeviceNet Vendors Association) standards and the IP66/67 environmental sealing ratings. IP67 waterproof fiber jumper connectors are designed according to the IEC60603-7 interface standard, which allows mating to other similar mechanical locking systems. In all, IP67 waterproof fiber optic patch cable is a low-cost and ideal alternative for industry, FTTA, or other harsh environmental conditions.

Why & Where to Use IP67 Waterproof Fiber Optic Patch Cable?

Compared to common fiber optic cables, IP67 waterproof fiber cables are endowed with the following features:

Corrosion-resistant, waterproof, dust-proof
High temperature stability, low insertion loss
Easy operation, reliable and cost-effective installation
Thread locking mechanism to ensure long-term reliable connection
Long-lasting and durable
Rugged design for extreme environments
High sealing performances for vacuum & under water applications

All of the above features make waterproof fiber cables suitable for outdoor application, such as:

Emergency repair quick connection system
Radio and television industry
Military exercise communication devices
Power industry emergency communication system
Oilfield, mining communication connection
Remote wireless base station
Railway signal control application
Intelligent substation communication
Video monitoring system

2.Armored Fiber Patch Cable

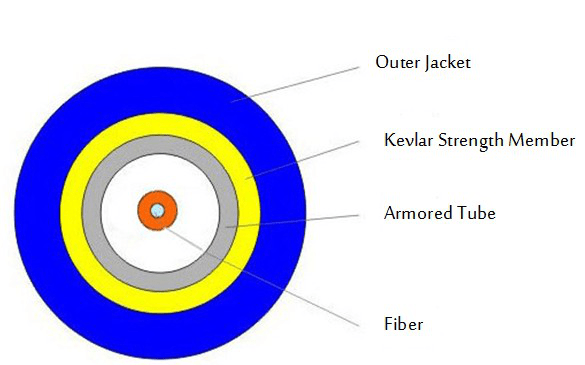

Unlike traditional fiber patch cables which are fragile and usually need careful operation, armored fiber patch cables are usually much more durable and flexible. Armored fiber patch cable usually has two jackets, one inner jacket and one outer jacket, between which there is a build-in steel tube. Some vendors also provide armored fiber cables with aluminum tube. This robust metal tube can provide optical fibers inside armored fiber cable from the impact and bite from animals. The most commonly used designs of armor used in armored fiber cables are interlock and corrugated. For most outside plant applications, the corrugated armored fiber cables are suggested. Now a lot of armored fiber patch cable uses interlock armor. During operation in data center, armored fiber patch cable can provide a more flexible cabling environment, because it has bend restrictor which can provide optical fibers from over bending. The following picture shows the structure of an armored fiber patch cable.

With its durability and flexibility, armored fiber patch cables and armored fiber cable are widely deployed in today’s network. For data center applications, there is a wide selection of armored fiber patch cables, which are available from different connector type, fiber type, jacket type, fiber count, etc.

Conclusion

It is usually inevitable to deploy fiber cables in harsh environments for both indoor and outdoor applications. Rodents, like squirrels in outdoor and rats in data centers, are cable destroyers which like to bite or chew fiber optic cables. Except that, there are also many other challenges which can harm fiber optic cables and cause fiber failures, like dusts, water or other liquid, accidental impact, etc. Thus, enough protection should be provided for fiber optic network. Two types of fiber patch cables, which are specially designed for harsh cabling environments,can easyly find in Fiber-Mart. Welcome to contact with us: product@fiber-mart.com
